200W IP66 Waterproof RGB Flood Lamp Projector Floodlight Smart Remote Control Multicolor
Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciation.
4mm tempered glass, Integrated Breather Valve: Balances The Internal & External Temperature and Humidity
Offset bracket design, Racked Angle ±120 ° adjustable, Allows For Precise Installation
Top brand LED chip and driver, ensure the product quality and lifetime
2-16m PIR Sensor
Ingress Protection Rating: IP66
Operation Temperature: -25ºC-+50ºC
4000K,5000K,5700K Adjustable
CRI >70,80
5 years Warranty
| Model | MF-TGD-B10W | MF-TGD-B20W | MF-TGD-B30W | MF-TGD-B50W | MF-TGD-B100W | MF-TGD-B150W | MF-TGD-B200W | MF-TGD-B300W |
| Rated Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W | 300W |
| LED Chips | 12 pcs | 24 pcs | 40 pcs | 72 pcs | 140 pcs | 208 pcs | 280 pcs | 448 pcs |
| Input Voltage | AC100 -277V |
| Chip | O-sram |
| Driver | ZH / Sosen / Meanwell |
| CRI | 70+/80+ |
| CCT | 3000K-4000K-5700K |
| Power Factor | >0.95 |
| Driver Efficiency | 92% |
Luminous
Efficacy | 120-130lm/W |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Housing | Die-Cast Aluminum |
| Cover Material | Tempered glass |
operation
Temperature | -25°C- +50°C |
| Beam Angle | 120° |
| Warranty | 3 / 5 years |

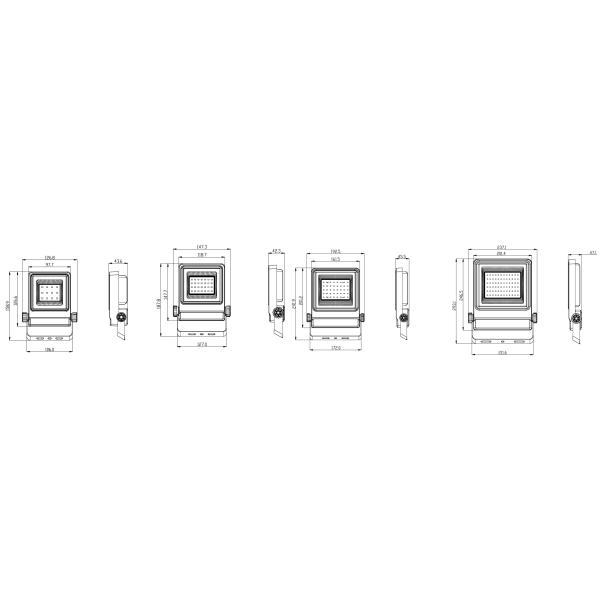

| Dimension | 127*159*44mm | 147*188**43mm | 193*242*46mm | 237*293*47mm | 280*344*55mm | 320*424*61mm | 337*476*63mm | 407*569*70mm |
Breather Valve, balance the internal andexternal pressure and humidity
Racked Angle,10°steps, allows for 270° installation adjustment.
Galvanized bracket, corrosion resistant
Die-casting technology by ADC12
Hem corner, strengthen stability
With hexagon socket screws, the surface looks neater
4mm Tempered Glass : clear,frosted,milky, highimpact resistance lK08
PIR Sensor: Distance 2-16m(<24C) / Time-Delay :10s-7m / Range :180° / Ambient:<10-2000lux
Offset Bracket: make the installation easier.allowthe installation process withoutremoving the bracket, save timeand labor cost
1. High performance and reputable brand LED chips and driver
2. Clear tempered glass decrease risk of lamp breaking for strong industrial applications
3. Optimized aluminum alloy housing design for superior thermal management
4. Instant light up with no warm up time
5. No cool down needed before restart
6. High mechanical impact resistance and ingress protection rating
7. Compact in size and easy for transportation
Options
1. Housing color and glass color
2. Length wire and special plug
3. Dimming 0-10V, 1-10V, DALI
10W / 20W / 30W / 50W
100W / 150W / 200W / 300W
Installation
Roads and highways / Parking lots / Sports stadiums / Railroad yards / Shipyards / Warehouses / Truck stops and rest areas /
Outdoor parks and recreation areas / Playgrounds / Storage facilities
Any Outdoor place,Etc
